Industry: Machine tool
- Profiled linear guideway MONORAIL MR with rollers
- Profiled linear guideway MONORAIL BM with balls
- Profiled linear guideway MONORAIL BZ with integrated racks drive
- Integrated distance measuring system AMS for MONORAIL MR/rollers and MONORAIL BM/balls
- Customized bearing
- Sliding bearing
- Profiled miniatur guideway MINIRAIL with balls
- Miniature profiled linear guideway with integrated distance measuring system MINISCALE PLUS with balls
- Linear bearing with rollers and balls, available also with cage assist
- Frictionless table and slide with rollers and balls, available also with cage assist
- Gear rack
- Mineral casting
- Recirculating unit NRT

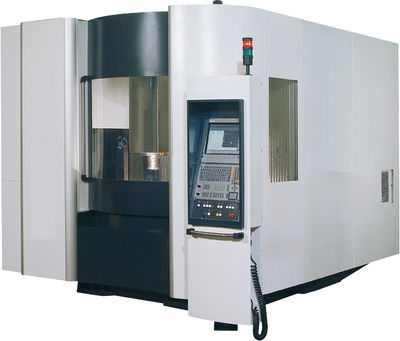

SCHNEEBERGER MONORAIL MR in the machine tool industry
A compact and solid machine tool with large work areas should be highly resistant to mechanical deformation. So, the requirements of high rigidity and excellent running characteristics represent the main target specs to be optimized.
In this case, the SCHNEEBERGER MONORAIL MR roller guideways with SPL lubrication units were used, because they achieve all requirements concerning the quality and reliability.
By using MONORAIL MR profiled guideways a high rigidity, rapid axis speed as well as excellent running characteristics have been achieved.
In addition, the accessibility to all parts has been improved. The resulting characteristics effective ergonomics and functionality not only make an operator’s work easier, but also safer and more efficient.
Example of application
- Whirling machines with profiled guidewaysBurgsmüller whirling machines
- SCHNEEBERGER profiled guideways MONORAIL with integrated measuring system AMSSCHNEEBERGER has been a trusted supplier to Peddinghaus for over 2 decades. Profiled guideways for tough applications, like steel I-beam drilling machines. MONORAIL now available with AMS integrated scale (IP68) with 0,1 ɥm resolutions. The company Peddinghaus is a complete machine tool manufacturer.
- No compromises with choice of the delivery supportSCHNEEBERGER MONORAIL profiled linear guideways bring high levels of flexibility for indexable insert grinding machines.
- SCNEEBERGER MONORAIL MR profiled linear roller guideways (article in english)SCHNEEBERGER MONORAIL profiled linear guideways bring high levels of flexibility to this Whirling machine.
- SCNEEBERGER MONORAIL MR profiled linear roller guideways (article in german)SCHNEEBERGER MONORAIL profiled linear guideways bring high levels of flexibility to this Whirling machine.
- SCHNEEBERGER MONORAIL with AMSSCHNEEBERGER MONORAIL MR with integrated measuring system AMS. The secret of success. With its expertise in Engineering SCHNEEBERGER is always one step ahead of the marketplace.
- High-performance profiled guidewaysWhen the heaviest loads in milling, turning, drilling or grinding machines need to be moved in an accurate manner, reliable linear bearings are one of the elements required for this. Schneeberger has the right solution in the form of its MONORAIL MR series, which is intended for various types of application and weight class. As such, workpieces weighing up to 150 tons can be moved in an extremely precise manner.
- Linear technology combined with integrated measuring system and mineral castingCombining linear technology with mineral casting offers unbeatable customer benefits.
- Profiled linear guideways MONORAIL with rollers – linear motionHigh rigidity, great dynamic and static load carrying capacity, outstanding running smoothness and the total enclosure of the carriage are the main features of the MONORAIL guideway.
