Type M/V linear guideways

Frictionless guideways with needle cages feature small displacement resistance values and extreme rigidity at high loads

Request for quote

To receive a quote please fill in this form below. One of our sales representatives is glad to help you.

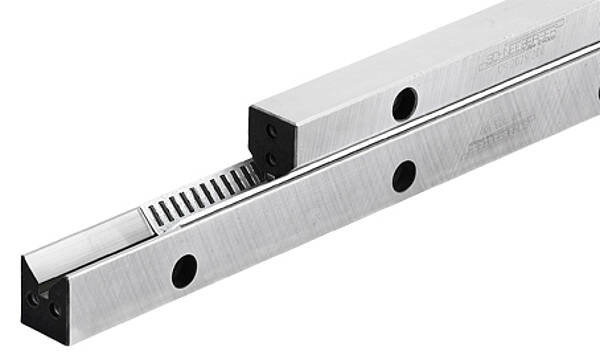

Linear bearing type M/V
Linear bearing type M/V

The Type M/V linear guideways equipped with needle cages are particularly well-suited for high-load applications. The SCHNEEBERGER composite cage results in smaller displacement resistance values and greater rigidity compared with similar needle guideways.

Sizes: 3015, 4020, 5025, 6035, 7040, 8050

Lengths: 100 to 1500 mm

Accessories

  • SHW, HW cages
  • EM, EV, EAM, EAV end pieces

Type RN and RNG linear guideways with rollers,
Type R linear guideways with balls or rollers,
Type RD linear guideways with balls or rollers,
Type N/O linear guideways with rollers or needles

The types RN, RNG, R, RD, N/O, and M/V provide linear motion technology with a cross-roller guideway, ball guideway, needle bearings, or needle cages

Frictionless roller guideways, such as in Types RN, RNG, R, RD, N/O, and M/V move machinery or assemblies in linear directions

  • Legend:
  • 100%100% best choice
  • 75%75%
  • 50%50%
  • 25%25% good choice
  • 0%0%

Product specific downloads

Linear bearings - Product catalog
Linear bearings - Product catalog Linear bearings and recirculating unitsDownload now
Flyer KCS
Flyer KCS Download now

SCHNEEBERGER overview linear bearings and positioning systems

Press releases

Linear bearings - The right solution for every need
Linear bearings - The right solution for every need Schneeberger linear bearings always stand for high quality. The company covers numerous fields of application thanks to its wide range of standard bearings. Download now

CAD data for type M/V for download:

The selected size can be configured and is available in all common data formats Please click on the appropriate size combination to start downloading.

By clicking on the following link you will be automatically redirected to CADENAS.

Open CAD data
