Type NDN micro frictionless table (balls)

The zero-backlash preload results in an extremely low displacement resistance

Major components are made of stainless steel

Micro frictionless tables type NDN
Micro frictionless tables type NDN

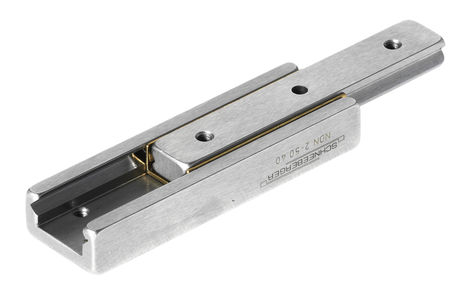

Type NDN micro frictionless table consists of four major components: the stainless steel top and bottom parts, the brass cage, and the stainless roller elements. The U-shaped cage connects the two rows of balls so the tendency towards cage creep is largely eliminated. The NDN micro frictionless tables are preloaded with zero backlash and the displacement resistance is extremely low. Type NDN is available in a single-axis version in three sizes.

SCHNEEBERGER E-SHOP

SCHNEEBERGER micro frictionless tables - limited quantity, easy ordering, quick delivery

Micro frictionless tables

Miniaturized frictionless tables are suitable for extremely demanding applications, even at high temperatures and in a vacuum

TYPE MSTYPE NDTYPE NDN
Type MSType NDType NDN
Loading capacity
Rigidity
Running characteristics
Anti cage creeping option
Light weigth design
Corrosion resistant
Accelerations/oscillations
  • Legend:
  • 100%100% best choice
  • 75%75%
  • 50%50%
  • 25%25% good choice
  • 0%0%

Downloads

Slides - Product catalog
Slides - Product catalog Dynamic and PreciseDownload now

SCHNEEBERGER overview linear bearings and positioning systems

CAD data for type NDN for download:

The selected size can be configured and is available in all common data formats Please click on the appropriate size combination to start downloading.

By clicking on the following link you will be automatically redirected to CADENAS.

Open CAD data
