Integrated distance measuring system Type AMSA 4B analog with balls

Magneto-resistive distance measuring system specially designed for applications in machine tools

Suitable solutions are available for a wide range of applications. This means that it is always possible to travel the most precise paths whilst adhering to the strictest tolerances.

Request for quote

To receive a quote please fill in this form below. One of our sales representatives is glad to help you.

Integrated measuring system for distance
measurement type AMSA 4B
Integrated measuring system for distance measurement type AMSA 4B

MONORAIL AMSA 4B is an integrated magneto-resistive measuring system for distance measurement based on the MONORAIL BM profile ball guideway with an analog voltage interface. These products are preferred for use in applications that make major demands on travelling speed and accuracy. No additional assembly or adjustment of the measuring system is required, which is reflected by cost savings in machine design, manufacture and servicing.

The accuracy and process reliability of the machine are also improved. The sturdy housing for the read-head has a complete wiper system consisting of longitudinal and cross wipers, which provide optimum protection for the measuring system. The AMSA 4B version has an analog voltage interface of 1 Vss for connection to all standard control systems.


Frequently Asked Questions about the AMSA System from SCHNEEBERGER

The absolute position is available after a reference run following power-up.

When replacing read heads, a deviation of a few tenths of a millimeter is possible. If higher accuracy is required, a correction in the control parameters is necessary.

No alignment of the read head is necessary. It is sufficient to attach the read head using the screws provided.

The periodic deviation is less than 0.8 µm.

The scale is protected inside the rail. The external fields are short-circuited by the rail and the surrounding environment, so they have no impact on the scale.

The risk that tools or chip nests will direct a magnetic flux through the scale is avoided by installing the scale on the opposite side of the linear motor.

AMS rails are installed without the use of magnetic lifting tools to avoid leaving residual magnetism in the rail.

The complete range of MONORAIL MR and MONORAIL BM can be used with AMS. However, sheet metal wipers from the standard program cannot be used.

In cross-section, compact carriages result in a minimally larger profile. In the direction of travel, the AMS is positioned between two carriages. If there is sufficient space between the carriages, the total length of the rail does not increase.

Is a calibration required after installing an AMS system? //

The absolute position is available after a reference run following power-up.


Does the exact absolute position need to be restored when replacing components? //

When replacing read heads, a deviation of a few tenths of a millimeter is possible. If higher accuracy is required, a correction in the control parameters is necessary.


Does the read head need to be aligned during installation? //

No alignment of the read head is necessary. It is sufficient to attach the read head using the screws provided.


How much does the signal period of 200 µm affect the system's deviation? //

The periodic deviation is less than 0.8 µm.


How do external fields from motors and rotary tables affect the built-in scale? //

The scale is protected inside the rail. The external fields are short-circuited by the rail and the surrounding environment, so they have no impact on the scale.


What should be considered when using linear motors? //

The risk that tools or chip nests will direct a magnetic flux through the scale is avoided by installing the scale on the opposite side of the linear motor.


What should be considered during installation? //

AMS rails are installed without the use of magnetic lifting tools to avoid leaving residual magnetism in the rail.


What accessories are used with the AMS? //

The complete range of MONORAIL MR and MONORAIL BM can be used with AMS. However, sheet metal wipers from the standard program cannot be used.


Does an AMS axis require more installation space than an axis without AMS? //

In cross-section, compact carriages result in a minimally larger profile. In the direction of travel, the AMS is positioned between two carriages. If there is sufficient space between the carriages, the total length of the rail does not increase.


Integrated digital and analog distance measuring system (with rollers or balls)

Digital and analog measuring systems enable precise linear motion and maintain the tightest tolerances

 Type AMSA 3BType AMSD 3BType AMSA 4BType AMSD 4BType AMSABS 3BType AMSABS 4BType AMSA 3LType MINISCALE PLUSType MINISLIDE MSQscale
Type AMSA 3BType AMSD 3B Type AMSA 4BType AMSD 4BType AMSABS 3BType AMSABS 4BType AMSA 3LType MINISCALE PLUSType MINISLIDE MSQscale
 MoreMore

More

MoreMoreMoreMoreMoreMore
Magnetoresistiv


Optical
Usable with MONORAIL MR
Usable with MONORAIL BM
Usable with MINIRAIL
Incremental measuring method
Absolute measurement method
Usable with MSQ
  • Legend:
  • 100%100% best choice
  • 75%75%
  • 50%50%
  • 25%25% good choice
  • 0%0%

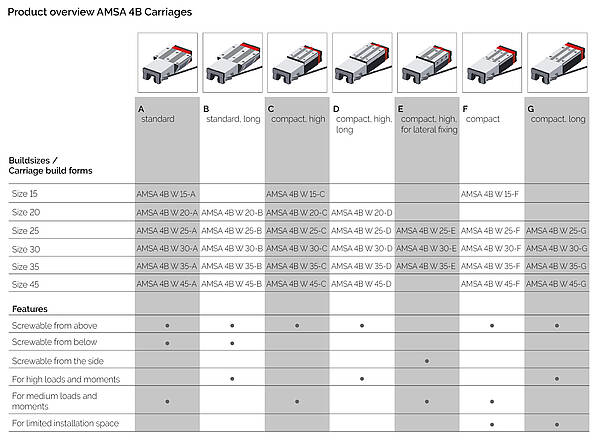

Product overview AMSA 4B carriages

Technical data and options

Dimensions and capacities
Links to the following sizes:

AMSA 4B 15 analog with balls
AMSA 4B 20 analog with balls
AMSA 4B 25 analog with balls
AMSA 4B 30 analog with balls
AMSA 4B 35 analog with balls
AMSA 4B 45 analog with balls

The MONORAIL AMS 4B is an integrated magneto-resistive measuring system for distance measurement based on the MONORAIL BM ball profile guideway. In measuring terms, the AMS 4B is the same as the AMS 3B; it offers the same performance in terms of assembly, cost savings, accuracy and process reliability. AMS 4B products are preferred for use in applications that make major demands on travelling speed and require good resistance to acceleration and vibration.

Product overview AMSA 4B carriages

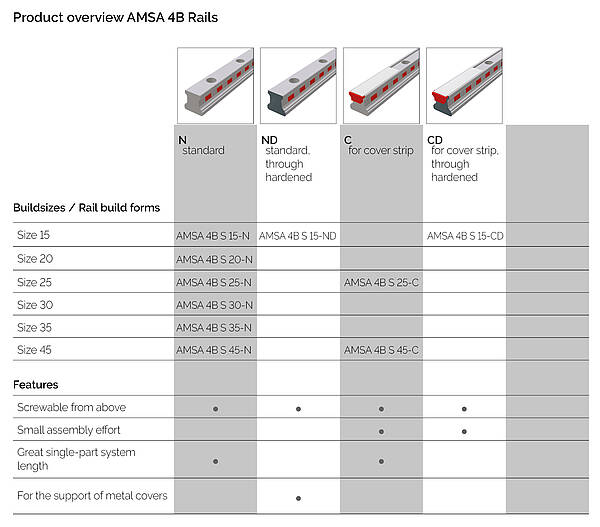

Product overview AMSA 4B rails

Technical data and options

Dimensions and capacities
Links to the following sizes:

AMSA 4B 15 analog with balls
AMSA 4B 20 analog with balls
AMSA 4B 25 analog with balls
AMSA 4B 30 analog with balls
AMSA 4B 35 analog with balls
AMSA 4B 45 analog with balls

The MONORAIL AMS 4B is an integrated magneto-resistive measuring system for distance measurement based on the MONORAIL BM ball profile guideway. In measuring terms, the AMS 4B is the same as the AMS 3B; it offers the same performance in terms of assembly, cost savings, accuracy and process reliability. AMS 4B products are preferred for use in applications that make major demands on travelling speed and require good resistance to acceleration and vibration.

Product overview AMSA 4B rails

Downloads

MONORAIL AMSABS 3L - Product brochure
MONORAIL AMSABS 3L - Product brochure Profile linear guideways with absolute measuring system for long axesDownload now
MONORAIL and AMS - Product catalog
MONORAIL and AMS - Product catalog Profile guideways and integrated measuring systemsDownload now
MONORAIL and AMS - Application catalog
MONORAIL and AMS - Application catalog Lubrifiaction, dimensioning, installation, mounting, measure of precautionDownload now
MONORAIL and AMS Mounting instruction
MONORAIL and AMS Mounting instruction Profile guideways and integrated measuring systemsDownload now
RoHS & REACH - Compliance
RoHS & REACH - Compliance SCHNEEBERGER GmbH, Directive 2011/65/EU, Regulation (EC) No 1907/2006, in EnglishDownload now
MONORAIL MR4S - Spare parts and Modification instruction
MONORAIL MR4S - Spare parts and Modification instruction MONORAIL MR4S - Spare parts and Modification instructionDownload now
Mounting notes MONORAIL MR4S
Mounting notes MONORAIL MR4S Mounting notes MONORAIL - Carriages MR4SDownload now
Blue Competence Fyler
Blue Competence Fyler Substainability that pays off.Download now

AMS movie

Our customers' requirements:
A space-saving and quick-to-assemble distance measuring system, which is close to the machining process.

Our solution:
Integrated distance measuring system - high-precision, reliable and low-maintenance.

SCHNEEBERGER overview MONORAIL and AMS

Assembly instructions for SCHNEEBERGER MONORAIL carriages

Assembly instructions for SCHNEEBERGER read heads

Press releases

Integrated measuring system guarantees exact travel distances
Integrated measuring system guarantees exact travel distances For over ten years, Schneeberger has been developing compact, integrated distance measuring systems for its monorail guideways and today, sets the standard in terms of accuracy, design, installation, adjustment, operation and maintenance.Download now
Integrated measuring system for distance measurement
Integrated measuring system for distance measurement Schneeberger offers cost-optimised solutions in the form of its Integrated measuring system for distance measurement, which can be used for a wide range of applications.Download now

CAD data for type AMS measuring system for download:

The selected size can be configured and is available in all common data formats Please click on the appropriate size combination to start downloading.

By clicking on the following link you will be automatically redirected to CADENAS.

Open CAD data

Advantages

  • Complete sealing of the read head housing, additional wipers can be added for applications in contaminated environment
  • Operation without central lubrication by using the SCHNEEBERGER lubrication plate SPL
  • Compact separate box for the sensor electronics
  • Voltage output signal / digital signal output in combination with SMEa interpolation electronics
  • Most of the MONORAIL BM accessories can be used
  • Rail length up to 6000 mm (BM 15: 1500 mm, BM 20: 3000 mm)

Features

  • Compact read head with separate box for the sensor electronics
  • Transversal mounting direction of the read head
  • Analog interface
  • Accuracy class +/- 5 µm / 1000 mm, +/- 2 µm / 40 mm
  • Periodic deviation +/- 0,7 µm
  • Resolution 0,0625 µm
  • 4,0 µm in combination with SMEa
  • Max. speed 3,0 m/s
  • The used sensors, electronics and scale are based on the AMSA-3B technology.
  • Vibration / impacts 30 g
