Type SKC ball recirculating unit

Especially well-suited for dry running and vacuum operations

Unlimited displacement paths even with low and medium loads

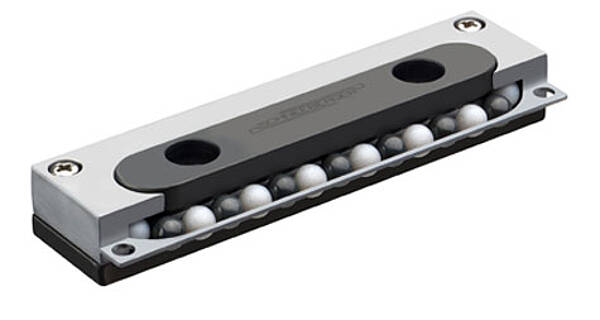

Ball recirculating unit type SKC
Ball recirculating unit type SKC

An unlimited displacement path through use of Type SKC recirculating unit in combination with SCHNEEBERGER Type R or RD linear guideways. The SKC recirculating unit for low and medium loads is installed in the same way as SCHNEEBERGER Type SK and SR roller units. The material combination of coated steel, ceramic, and Teflon® balls means excellent suitability for dry running, vacuum, and cleanroom systems.

Sizes: 3, 6

Lengths: 75 to 100 mm

Recirculating units with balls, rollers, needle bearings, or needle cages

Bearing units combined with linear guideways allow equal load-bearing and space-saving designs in all directions

  • Legend:
  • 100%100% best choice
  • 75%75%
  • 50%50%
  • 25%25% good choice
  • 0%0%

Product specific downloads

Linear bearings - Product catalog
Linear bearings - Product catalog Linear bearings and recirculating unitsDownload now
Flyer KCS
Flyer KCS Download now

SCHNEEBERGER overview linear bearings and positioning systems

CAD data for type SKC for download:

The selected size can be configured and is available in all common data formats Please click on the appropriate size combination to start downloading.

By clicking on the following link you will be automatically redirected to CADENAS.

Open CAD data
