Printing solutions

Many thanks for your interest in SCHNEEBERGER products. It will be a pleasure to contact you in order to discuss more about your needs and our proposed solutions. Please send us your request and we will get back to you.

Highest accuracy and outstanding geometrical performances on one single linear axis are the key factors for a perfectly printed image.

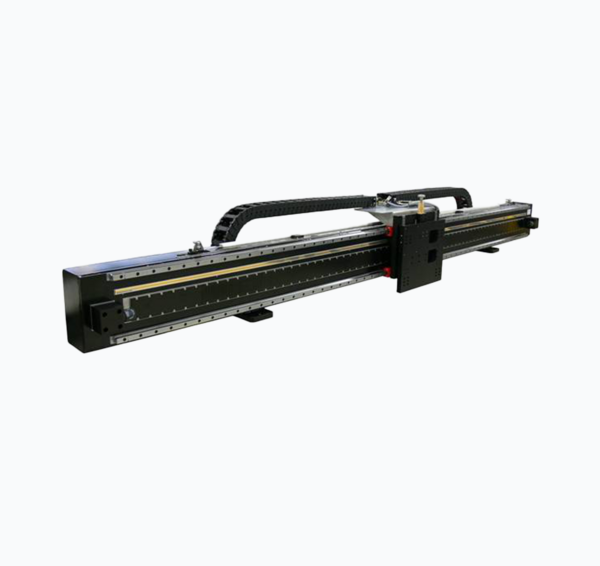

SCHNEEBERGER is offering a concentrate of best possible performances on very large travels. Additional axes (Z and/or) T are perfectly integrated on the main axis in order to propose a fully integrated base for your printing device.

This specific build-up knowledge is integrated in our 3D systems solutions in order to propose you the best possible solution for your 3D demands.

Typical specifications for "Printing" at POI*

  • Configuration: X + Z (XYZ also available)
  • Travel: up to 7000mm
  • Accuracy: ≤ 20 µm (over TIR, mapped)
  • Repeatability: ≤ 2 µm
  • Stability: ≤ 50 nm (within 1s ptp)
  • Move & Settle: < 500ms for 300mm
  • Cst velocity: < 0.01% at <100mm/s
  • Straightness: < 20um over 3000mm
  • Flatness: < 20um over 3000mm

*Point Of Interest

Systems movie

Our customers' requirements:
Reliable and precise products.

Our solution:
tailored systems, from single axes with integral control units through to highly complex machines.
