新加坡一体式测距系统 AMSABS 4B 绝对式/滚柱型和滚珠型
专为机床应用设计的磁阻测距系统
Measuring-heads in suitable sizes,. 可以方便地装配到导轨系统。
产品需求联系表单
您有关于该产品方面的问题吗？如有，敬请联系我们，我们的销售代表将竭诚为您提供帮助。
随着单轨AMSABS4B，SCHNEEBERGER提供一个集成的，自动化工程，机械处理技术与机床工程，即高力吸收和精确的距离测量需要在小型集会场 所使用的绝对距离测量系统。从力学的角度，AMSABS4B为基础上单轨BM滚引导高达6米的长度。距离测量系统的紧凑型的住房，有利于建设高度紧凑的 轴。
具有成熟的AMS产品的优点
- 安全的磁栅感应技术
- 单根长度可达6米 (BM 15: 1500 mm; BM 20: 3000 mm)
- 读书头适用于所有规格
- 导轨和读数头具有互换性
我们增加了以下附加功能，以简化在工业环境中行程测量系统的工序。
- 绝对式数字接口
- 运行条件的显示
- 通过串行链路配置和诊断选项
- 通过处理有效信息提高运行可靠性
新接口
AMSABS为SSI, SSI+SinCos和所有Fanuc控制器的连接提供一个绝对接口。最近新 添加连接至西门子DRIVE CLiQ®(DRIVE-CLiQ是西门子公司的注册商标。) 通信协议和所有三菱控制器的直接接口。
SCHNEEBERGER为球体型材轨道导向装置单轨BM开发了集成磁阻测量系统AMS 4B。测量技术符合AMS 3B并对此在安装、节省成本、精度和工艺过程安全性方面具有同样的优势。当对运行速度和动态特性有更高要求时，优先使用AMS 4B产品。
SCHNEEBEGER的集成长度测量系统AMS完美地融入单轨导向装置 - 无论是与滚轴-还是与球体底座 - 进行整合， 并确保准确路径的公差在±5微米/米内。
更多信息：
连接至技术数据表
集成的数字和模拟测距系统（带有滚柱或滚珠）
数字和模拟测量系统可实现精确的线性运动，并保持最严格的公差。
 |  |  | | | |  |  |  | |
|---|---|---|---|---|---|---|---|---|---|
| 系列AMSA 3B | 系列 AMSD 3B | 系列AMSA 4B | 系列 AMSD 4B | 系列 AMSABS 3B | 系列 AMSABS 4B | 系列AMSA 3L | 系列 MINISCALE PLUS | 系列 MINISLIDE MSQscale | |
| 更 | 更 | 更 | 更 | 更 | 更 | 更 | 更 | ||
| 磁栅 |  | | | | | | | ||
| 光栅 | | | |||||||
| 可与MONORAILMR一起使用 | | | | | |||||
| 可与MONORAIL BM一起使用 | | | | ||||||
| 可与MINIRAIL一起使用 | | ||||||||
| 增量测量方法 | | | | | | | | ||
| 绝对测量法 | | | |||||||
| 可与MSQ一起使用 | |
- 说明
- 100 % 最佳选择
75%
50%
25 % 明智选择
0%

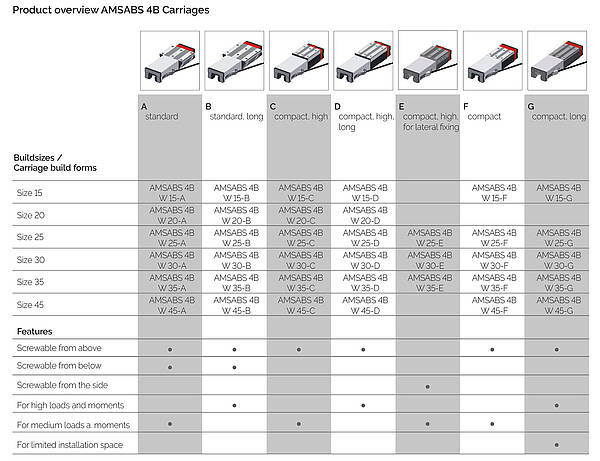

Product overview AMSABS 4B carriages
Technical data and options
Dimensions and capacities
Links to the following sizes:
AMSABS 4B 15 Integrated measuring system absolut with balls
AMSABS 4B 20 Integrated measuring system absolut with balls
AMSABS 4B 25 Integrated measuring system absolut with balls
AMSABS 4B 30 Integrated measuring system absolut with balls
AMSABS 4B 35 Integrated measuring system absolut with balls
AMSABS 4B 45 Integrated measuring system absolut with balls
Various options regarding lubrification and sealing of the measuring carriages mean that optimal adjustments can be made to the requirements of the application. The easily exchangeable reading head is identical and replaceable for all sizes
Product overview AMSABS 4B carriages

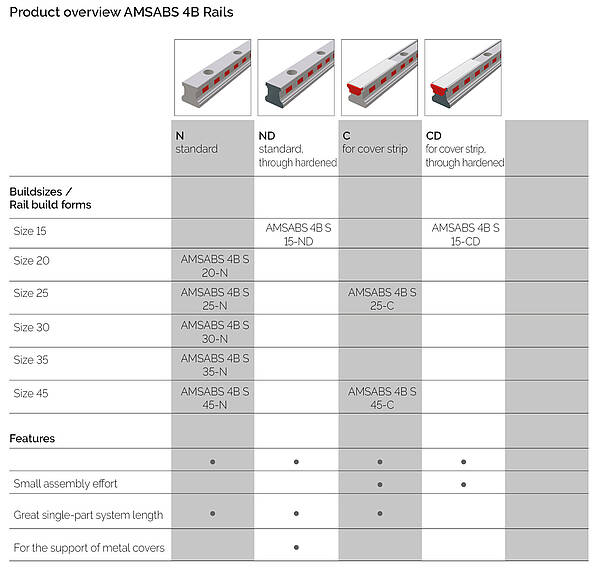

Product overview AMSABS 4B rails
Technical data and options
Dimensions and capacities
Links to the following sizes:
AMSABS 4B 15 Integrated measuring system absolut with balls
AMSABS 4B 20 Integrated measuring system absolut with balls
AMSABS 4B 25 Integrated measuring system absolut with balls
AMSABS 4B 30 Integrated measuring system absolut with balls
AMSABS 4B 35 Integrated measuring system absolut with balls
AMSABS 4B 45 Integrated measuring system absolut with balls
With the MONORAIL AMSABS 4B, SCHNEEBERGER provides an integrated measuring system for absolute distance measurement for use in automation engineering, mechanical handling technology and machine tool engineering, whereby high force absorption and precise distance measurements are required in small assembly spaces. From a mechanical point of view, the AMSABS 4B is based on the MONORAIL BM roller guide up to a length of 6m. The distance measurement system’s compact housing facilitates the construction of highly compact axes. SCHNEEBERGER provides a fully digital interface with various cable lengths in order to connect it with the SSI, SSI+SinCos, FANUC, Mitsubishi and Siemens Drive CliQ® controllers
Product overview AMSABS 4B rails
下载
MONORAIL and AMS - Product catalog
Profiled guideways and integrated measuring systems
MONORAIL and AMS - Application catalog
Lubrifiaction, dimensioning, installation, mounting, measure of precaution
MONORAIL and AMS Mounting instruction
Profiled guideways and integrated measuring systems
Mounting notes MONORAIL MR4S
Mounting notes MONORAIL - Carriages MR4S
MONORAIL MR4S - Spare parts and Modification instruction
MONORAIL MR4S - Spare parts and Modification instruction
AMS 电影
客户要求：
节省空间且快速装配的测距系统，接近加工过程。
我们的解决方案：
集成的测距系统 - 高精度，可靠且维护工作量低。
SCHNEEBERGER overview MONORAIL and AMS
联系媒体代表
Integrated measuring system guarantees exact travel distances
For over ten years, Schneeberger has been developing compact, integrated distance measuring systems for its monorail guideways and today, sets the standard in terms of accuracy, design, installation, adjustment, operation and maintenance.
Integrated measuring system for distance measurement
Schneeberger offers cost-optimised solutions in the form of its Integrated measuring system for distance measurement, which can be used for a wide range of applications.
产品特点
- 使用绝对式接口
- 更换读数头时系统无需归零
- 系统启动后显示绝对位置
