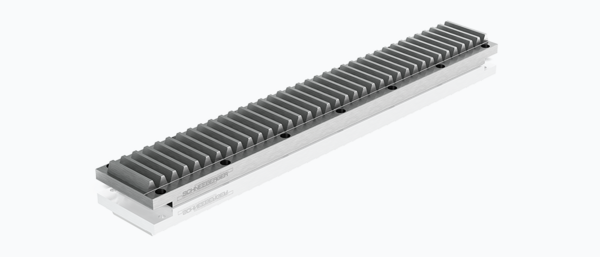

Gear racks can be customized with different materials and up to 3000mm
You need a gear rack but standardised dimensions do not fit your system?
No problem.
You can have any gear racks up to module 20. The maximum one-piece length is 3000 mm.
The customer can choose from different materials and therefore configure the gear rack just as required.
Special is our standard!
Any gear racks and guide racks can be made to a customer's drawing as long as they are within the specifications listed below.
| Unit weight: | max. 500 kg |
| Length | max. 3000 mm |
| Tooth rack: | Modules 2 … 20 |
| Helix angle β | -30° …+30° |
| Material: | C45, 42CrMo4 V, 16MnCr5 X90CrMoV18 (stainless steel) |
| Hardening process: | Induction hardening Case hardening Through hardening Nitriding |
| Best accuracy: | Q4 |
