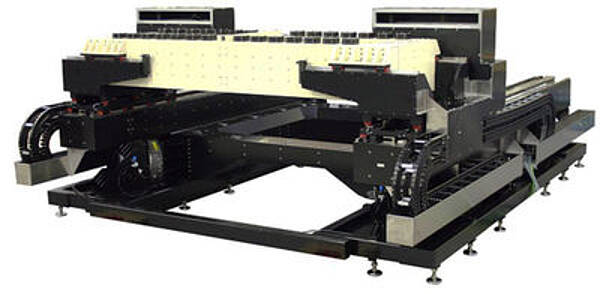

Highest accuracy and outstanding geometrical performances on one single linear axis are the key factors for a perfectly printed image.
SCHNEEBERGER is offering a concentrate of best possible performances on very large travels. Additional axes (Z and/or) T are perfectly integrated on the main axis in order to propose a fully integrated base for your printing device.
This specific build-up knowledge is integrated in our 3D systems solutions in order to propose you the best possible solution for your 3D demands.
Typical specifications for "Printing" at POI*
- Configuration: X + Z (XYZ also available)
- Travel: up to 7000mm
- Accuracy: ≤ 20 µm (over TIR, mapped)
- Repeatability: ≤ 2 µm
- Stability: ≤ 50 nm (within 1s ptp)
- Move & Settle: < 500ms for 300mm
- Cst velocity: < 0.01% at <100mm/s
- Straightness: < 20um over 3000mm
- Flatness: < 20um over 3000mm
*Point Of Interest
Systems movie
Our customers' requirements:
Reliable and precise products.
Our solution:
tailored systems, from single axes with integral control units through to highly complex machines.
SCHNEEBERGER overview linear bearings and positioning systems
Article/Example of application
Quantensprung in Sicht
Februar 2014
High velocity
Thanks to its high-performance positioning and movement systems, Schneeberger is one of the leading companies in the industry.
Press releases
New positioning system doubles positioning speed for 450 mm
Revolutionary double gantry from Schneeberger. Known for innovation, Swiss firm Schneeberger AG Lineartechnik is currently developing a new positioning system that will bear the name Double Gantry.
SCHNEEBERGER Positioning Systems
Customer-specific positioning systems with a high degree of purity. Positioning systems used in particularly demanding branches of industry.
SCHNEEBERGER Positioning Systems - in different industries
In semiconductor, medical engineering, and solar technology must guarantee the highest level of precision and reliability whilst at the same time maintaining an extremely high degree of purity.
