Solar solutions

Many thanks for your interest in SCHNEEBERGER products. It will be a pleasure to contact you in order to discuss more about your needs and our proposed solutions. Please send us your request and we will get back to you.

We help you Increasing your panel efficiency thanks ultra high accurate motion platforms from SCHNEEBERGER.  Key words focus are minimize junctions or dead-areas and maximize your performances.

Independent if thin film or crystalline technology, we provide you the best possible solution for moving your substrate and/or process head under the highest precision.

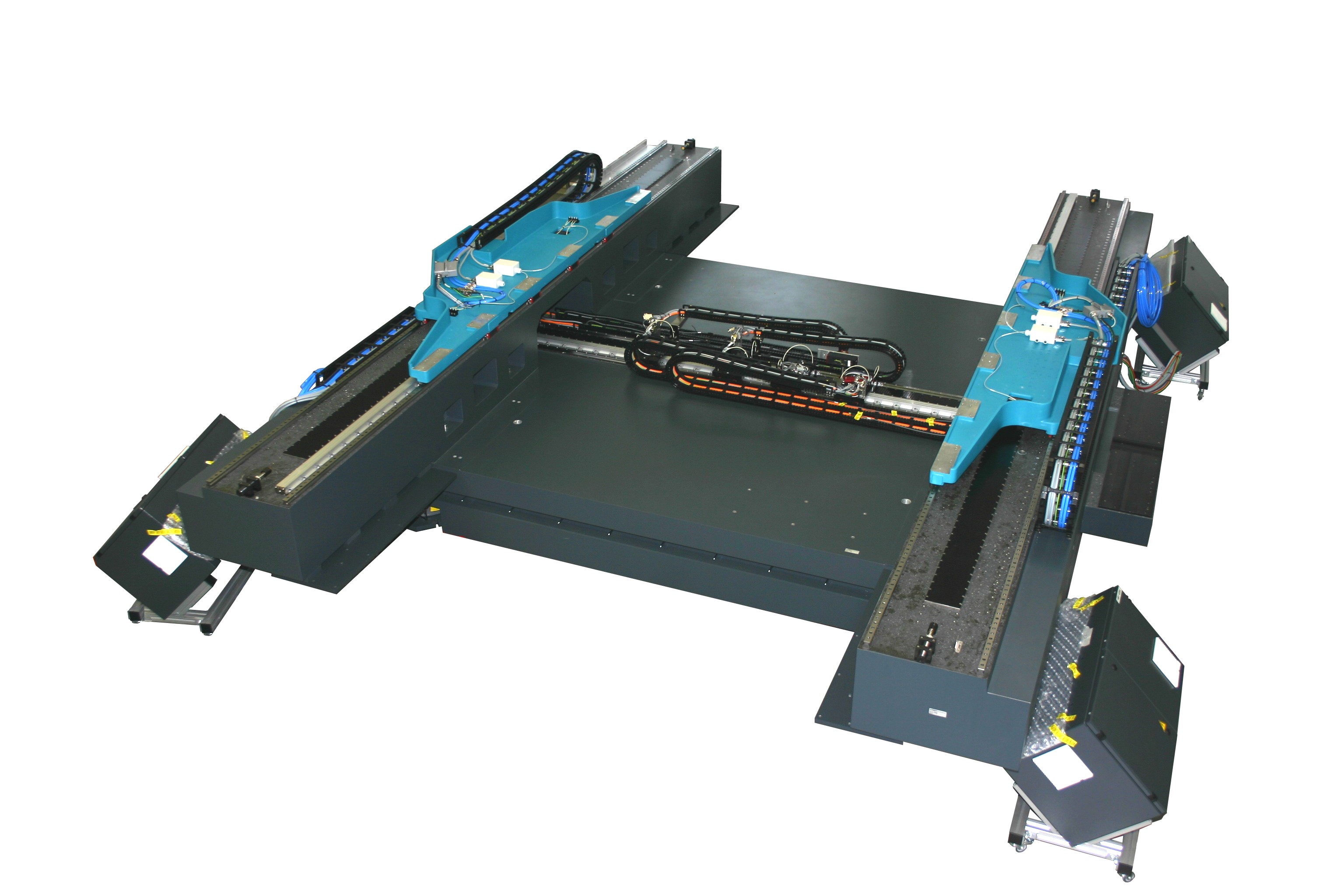

Typical specifications for "Solar" at POI*

  • Configuration: Y (gantry) + xX + Z
  • Travel: up to 3500 x 2700mm
  • Accuracy: ≤ 10 µm (over TIR, mapped)
  • Repeatability: ≤ 2 µm
  • Stability: not relevant (on the fly compensation)
  • Move & Settle: < 500ms for 300mm
  • Cst velocity: < 0.01% at <1000mm/s
  • Straightness: < 20um over 3000mm
  • Flatness: < 20um over 3000mm

*Point Of Interest

Systems movie

Our customers' requirements:
Reliable and precise products.

Our solution:
tailored systems, from single axes with integral control units through to highly complex machines.
